Sunday Model C 24" Bike

• 24" Pro-Style Geometry
• 100% Chromoly Frame
• Odyssey Broc Raiford Grips
• Odyssey Twisted PC Pro Pedals
• Sunday Badge Pivotal Seat
• Sunday Quick-Release Seat Post Clamp
• Odyssey Springfield Brakes
• Sealed Front & Rear Hubs
• Odyssey Stage 1 Rims
• Odyssey Path Pro 24” OEM Tires


Specifications

Frame: Sunday Model-C, 24" frame, 100% Chromoly w/ Integrated HT, Cr-Mo DT/CS
Fork: Sunday Model-C, 24" fork w/ 2-piece chromoly steerer tube and welded pre-load
Handlebar: Sunday 24umph XL OEM, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset:  FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic

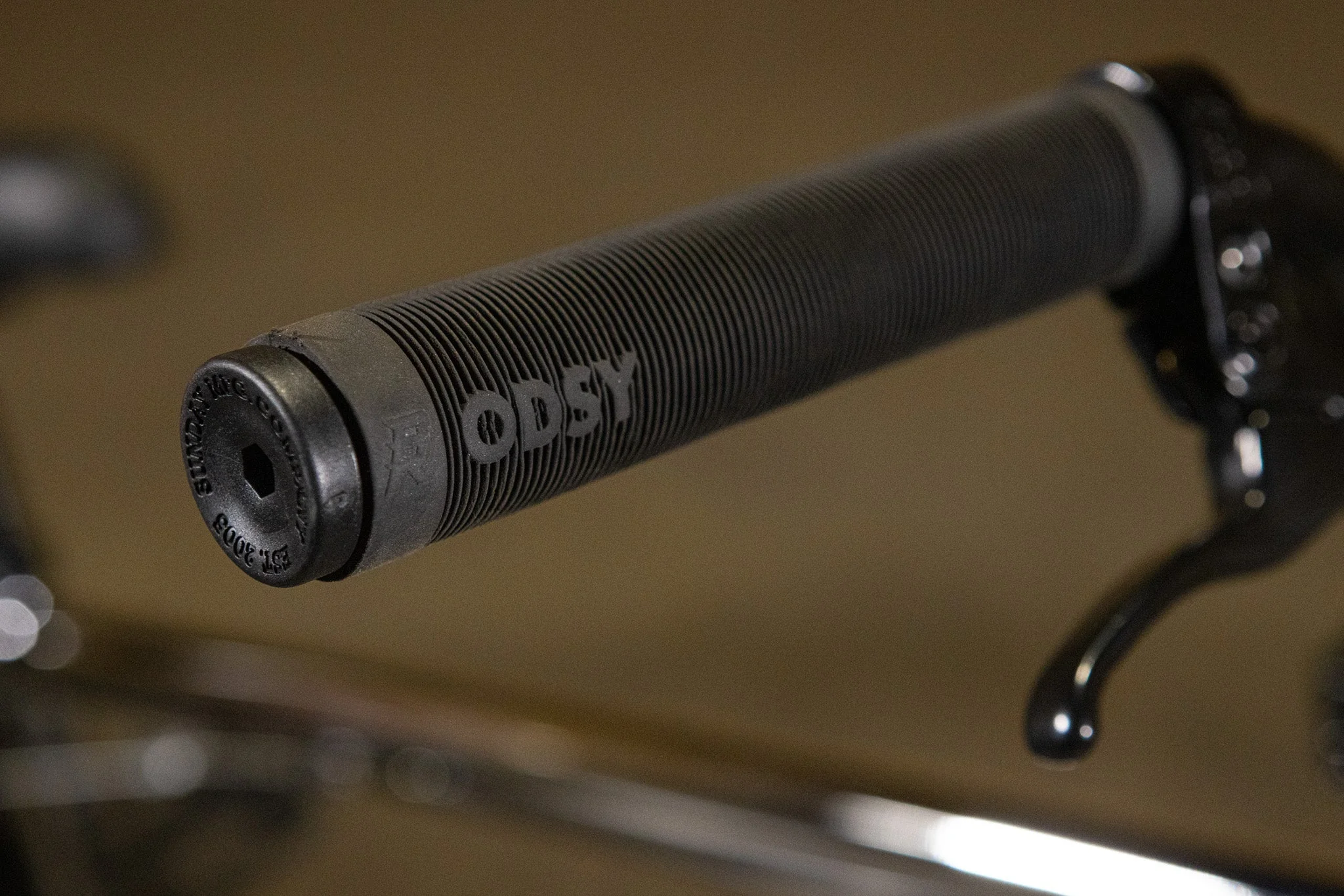

Grips: Odyssey Broc Raiford
Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal, 300mm
Seat Clamp: Sunday, Quick Release
Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Stage 1, 24", 36H

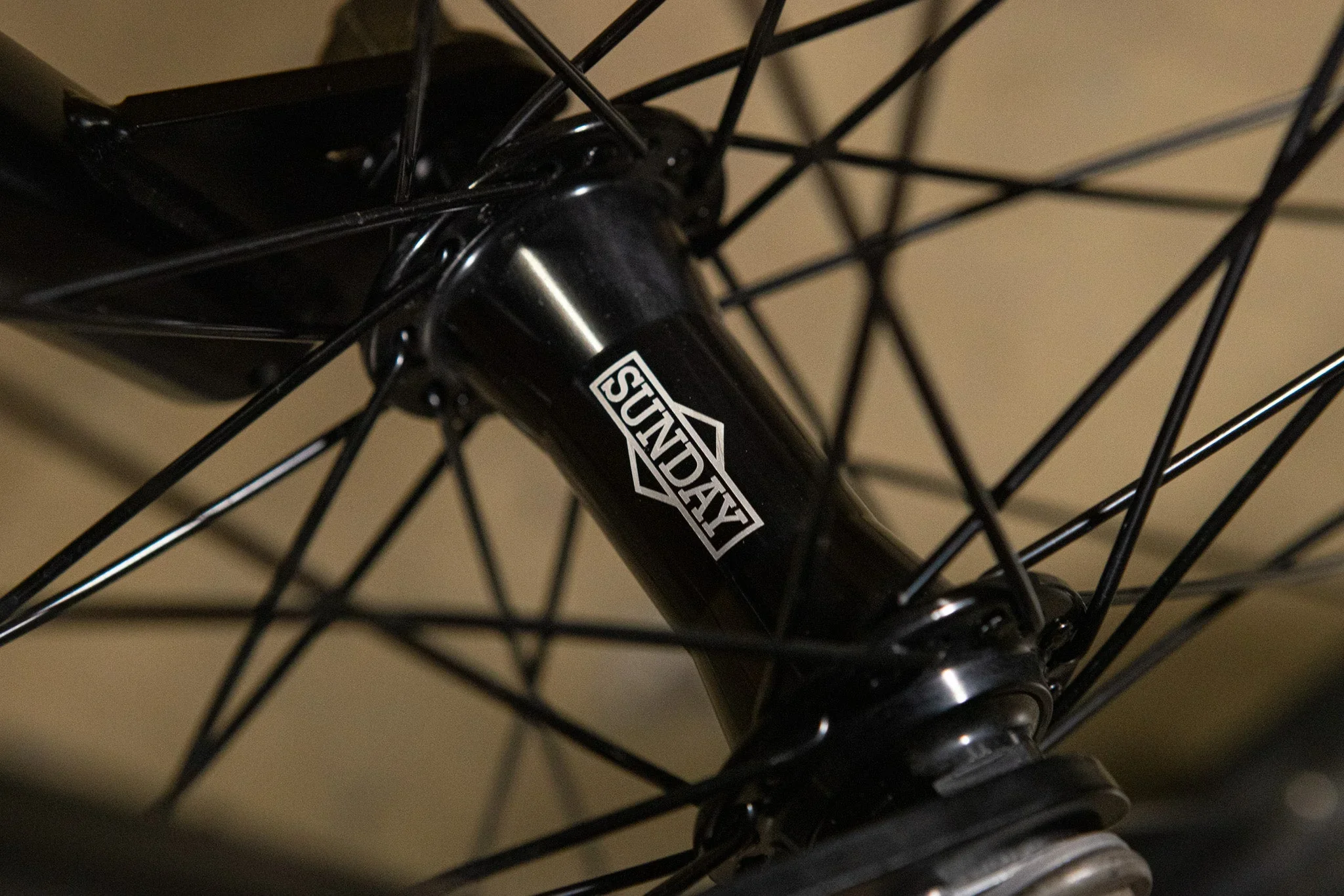

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" axle
Rear Hub: Sunday 36H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black
Tires: Odyssey Pursuit OEM, 24 x 2.2" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 29.1lbs (with Brakes)

Frame Geometry

Top Tube Length: 22"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 14.6-14.85”
Bottom Bracket Height: 13.75"
Standover: 9.25”

Handlebar Geometry

Rise: 7.75"
Width: 28"
Backsweep: 12°
Upsweep: 4°
