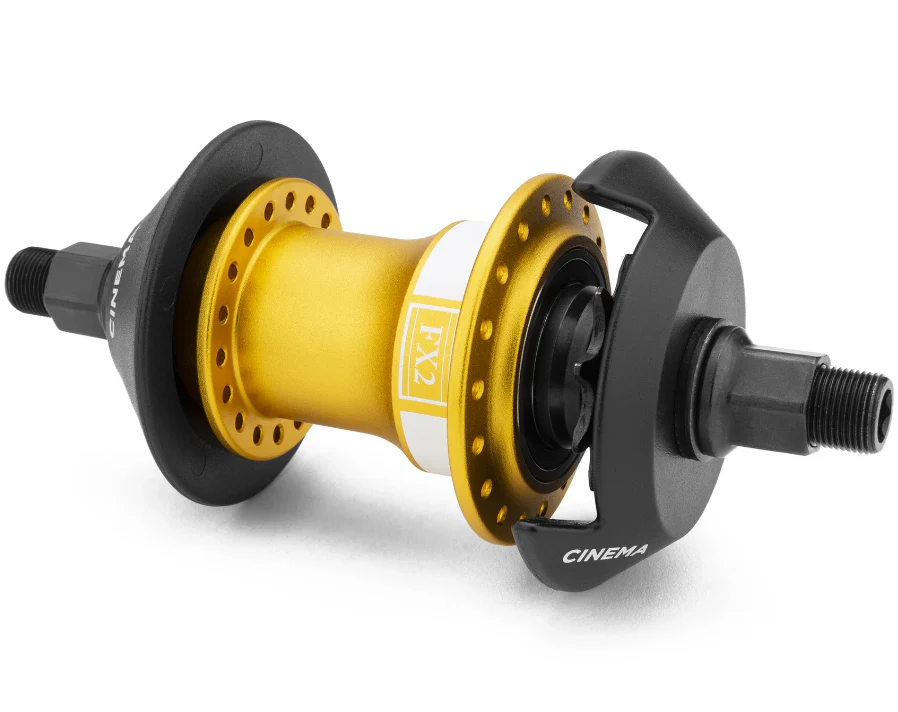

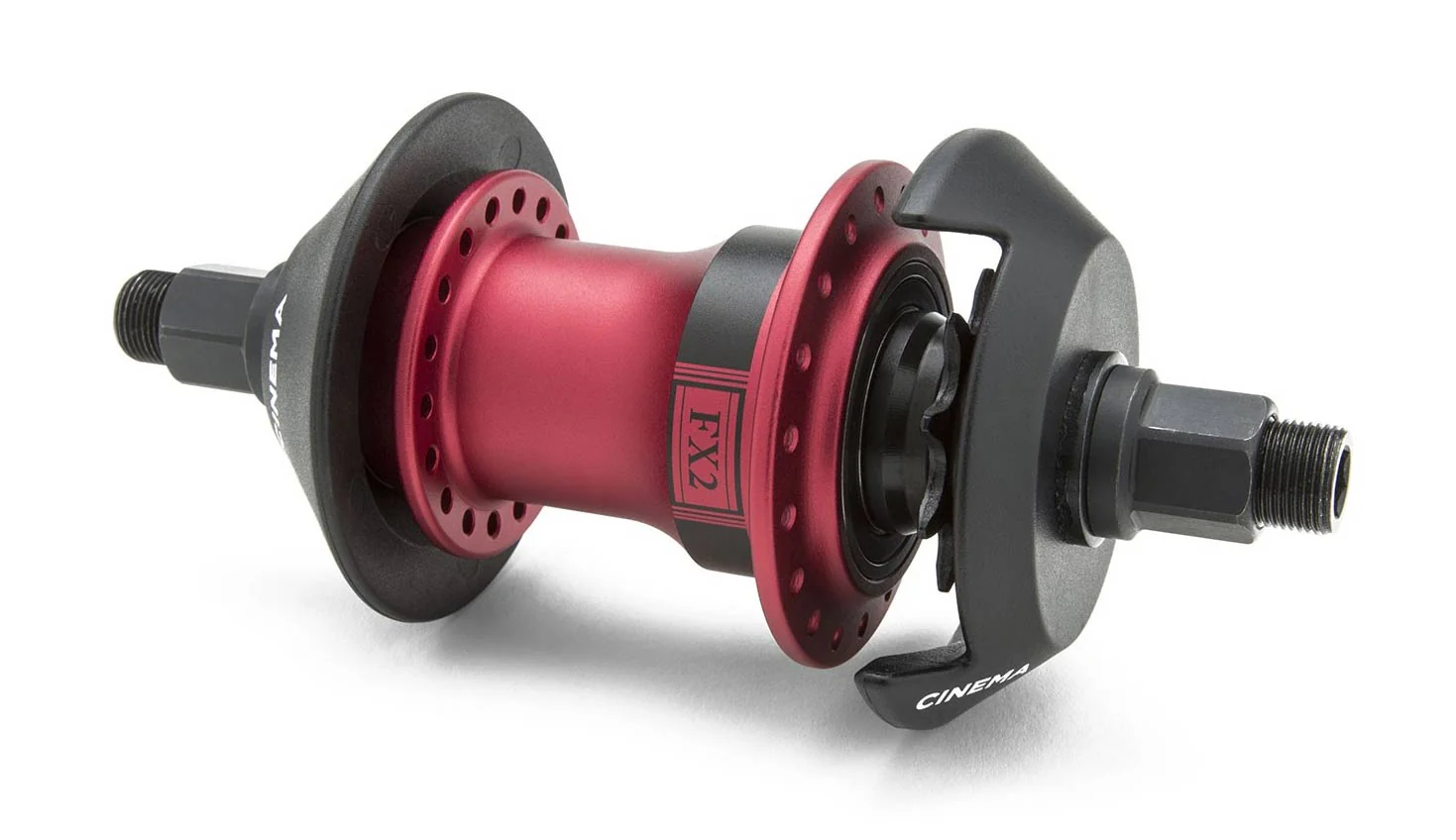

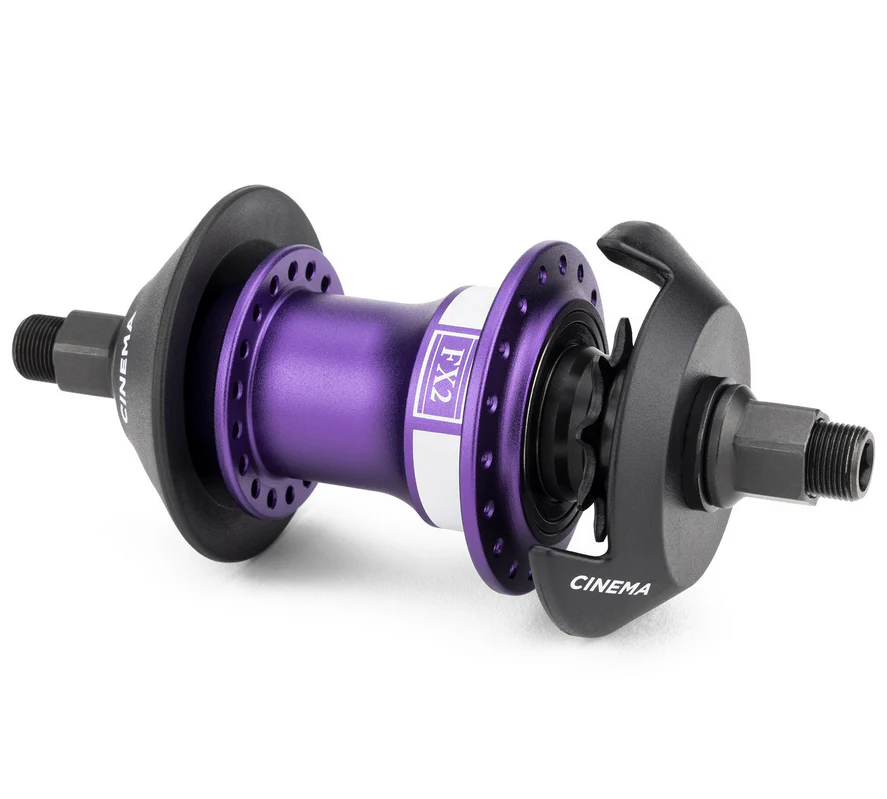

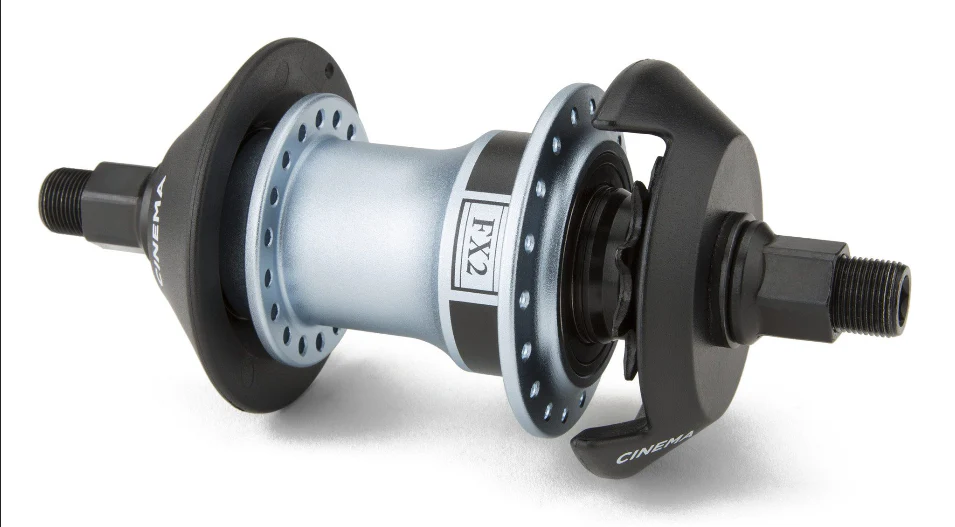

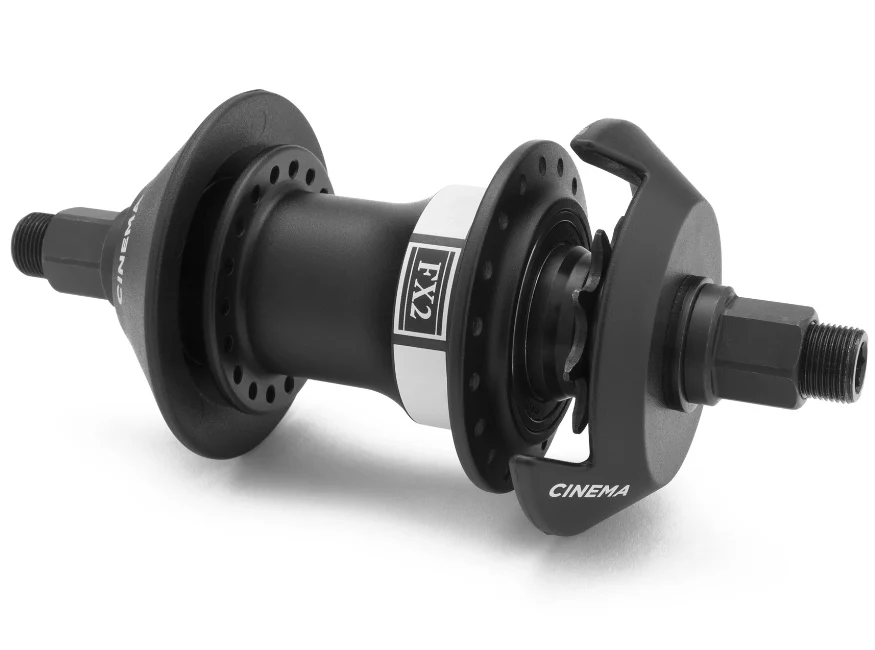

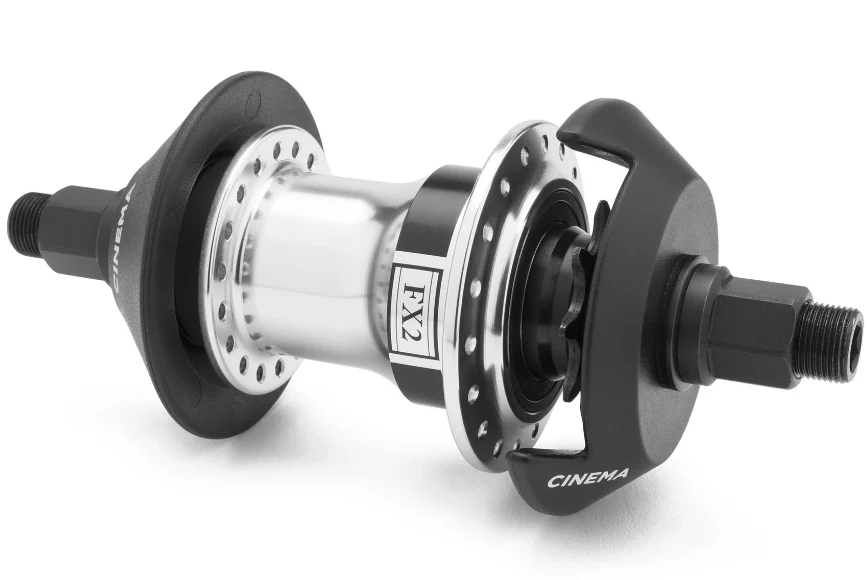

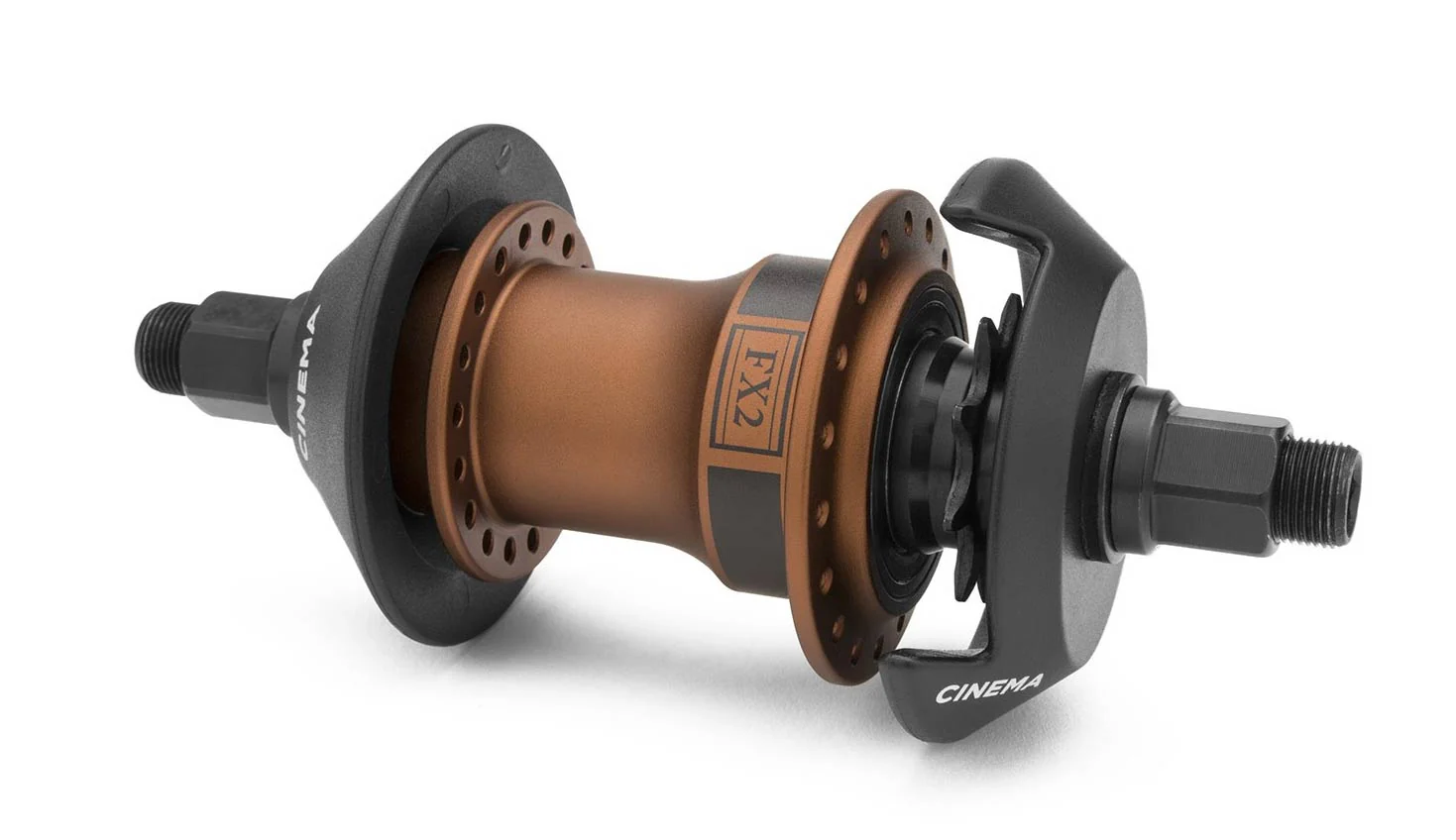

Cinema FX2 Freecoaster Hub

The Cinema FX freecoaster hub is team tested and approved. Built with proven KHE internals, the Cinema FX system features a polymer bushing and sealed cartridge bearings. The custom hub body is CNC machined from 6061 –T6 aluminum and features staggered flange diameters to maximize flange strength and reduce weight. 14mm heat-treated chromoly axle with 6mm internal hex. Includes 3 slack adjustment washers allows fine tuning for riding preference. Available in RHD or LHD.

HUB SPECS
Material: 6061 aluminum hub shell
Axle: 14mm heat-treated chromoly axle with 6mm internal hex
Axle Nuts: 14mm threaded steel nuts (14x1 thread pitch)
Non-Driveside Cone: 23mm threaded allow nut (x1)
Drive Side Cones: 23mm threaded allow nut (x1)
Driver: 9-tooth chromoly driver with polymer bushing and sealed cartridge bearings
Flange Offset From Center: 28mm drive side / 26mm non-drive side
Pitch Circle Diameter: 58mm drive side / 46mm non-drive side
Bearing Code: 6902 (x2), 6002 (x1), 7905 (x1)
Spoke Holes: 36 holes
Weight: 22.95 oz
